Van Lonzo Black Triangle Drill Bit, Multi-Size Hard Alloy Tipped Black Triangle Drill Bit for Tile, Brick, Concrete & Wood Drilling
- Overview
- Application
- Advantages
- FAQ
- Recommended Products
Overview
Changshunda Manufacturer Intro
Changshunda Factory is located in Jishan County, Yuncheng City, Shanxi Province, China, professional manufacturer specializing in vacuum brazed diamond drilling & cutting tools. We have complete production lines and strict QC inspection system, support OEM & ODM wholesale customization: custom drill dimension, body color, private logo and package design for global cross-border sellers and hardware importers. Our diamond tools are exported to Europe, Southeast Asia, Middle East and North America all over the world.
1.Product Specification

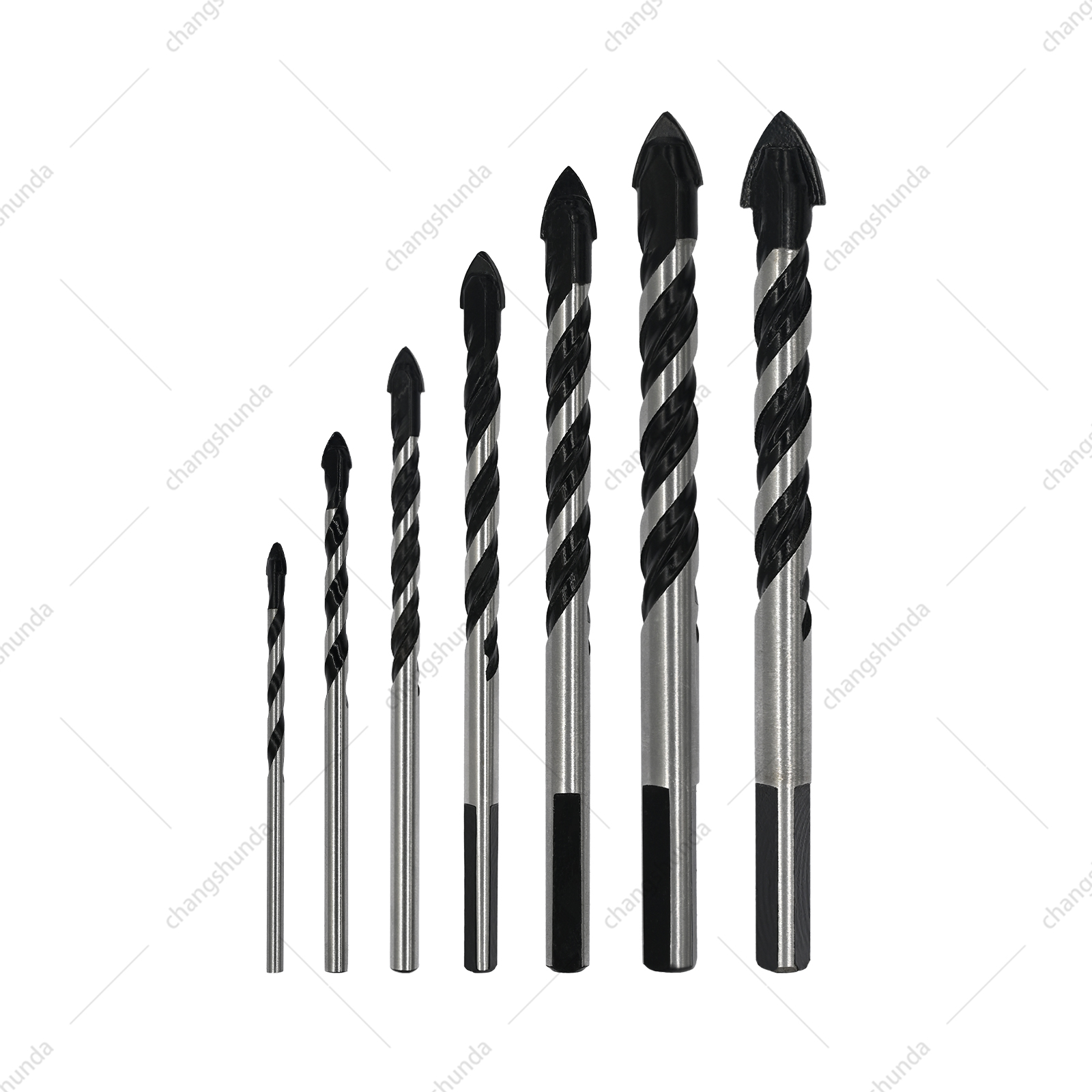

This versatile Black Triangle Drill Bit is a multi-size multi-material drilling tool designed for household and construction drilling work. The Black Triangle Drill Bit adopts hard alloy sharp tip to realize one-step accurate positioning without slipping on hard surfaces. The Black Triangle Drill Bit is equipped with U-shaped chip removal grooves to rapidly discharge debris during continuous drilling. Two shank styles are available for the Black Triangle Drill Bit: round shank for small sizes and triangular shank for large sizes, which can match most household electric drills firmly without slippage. All sizes of the Black Triangle Drill Bit undergo fine polishing and anti-rust treatment to extend service life in complex construction environments. Full standard parameters of the Black Triangle Drill Bit are listed in the framed table below:
| Parameter Item | Detailed Information |
| Place of Origin | Qinghe Town, Jishan County, Yuncheng City, Shanxi Province, China |
| Brand Name | Van Lonzo |
| Model Number | 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm |
| Certification | CE, EN: 13236 |
| Shank Classification | Round shank (3/4/5mm); Triangular shank (6/8/10/12mm) |
| Chip Flute Design | Single U-groove (3/4mm); Double U-groove (5-12mm) |
| Tip Material | High-hardness wear-resistant hard alloy |
| Compatible Power Tools | Cordless drills, handheld impact drills, electric screwdrivers |

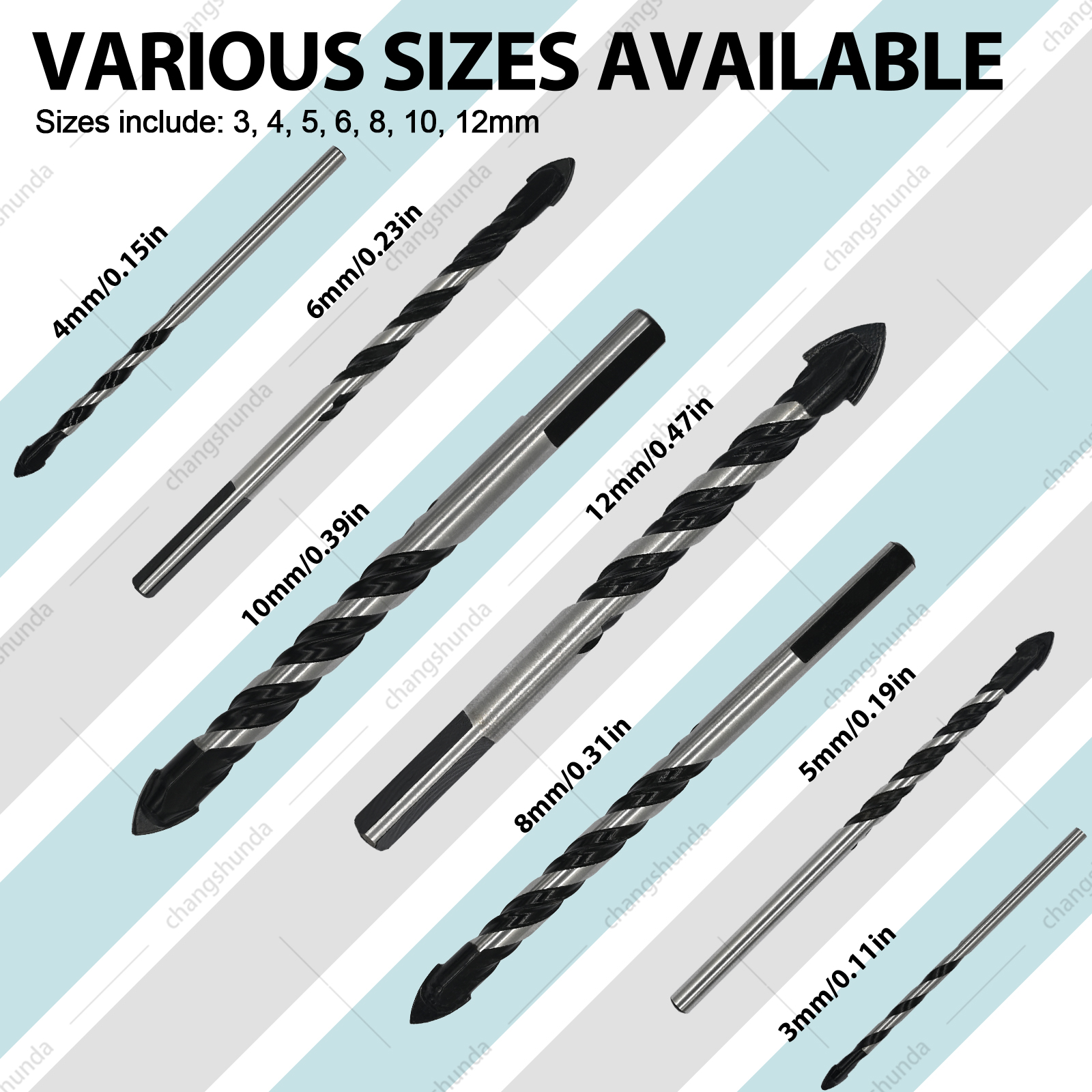

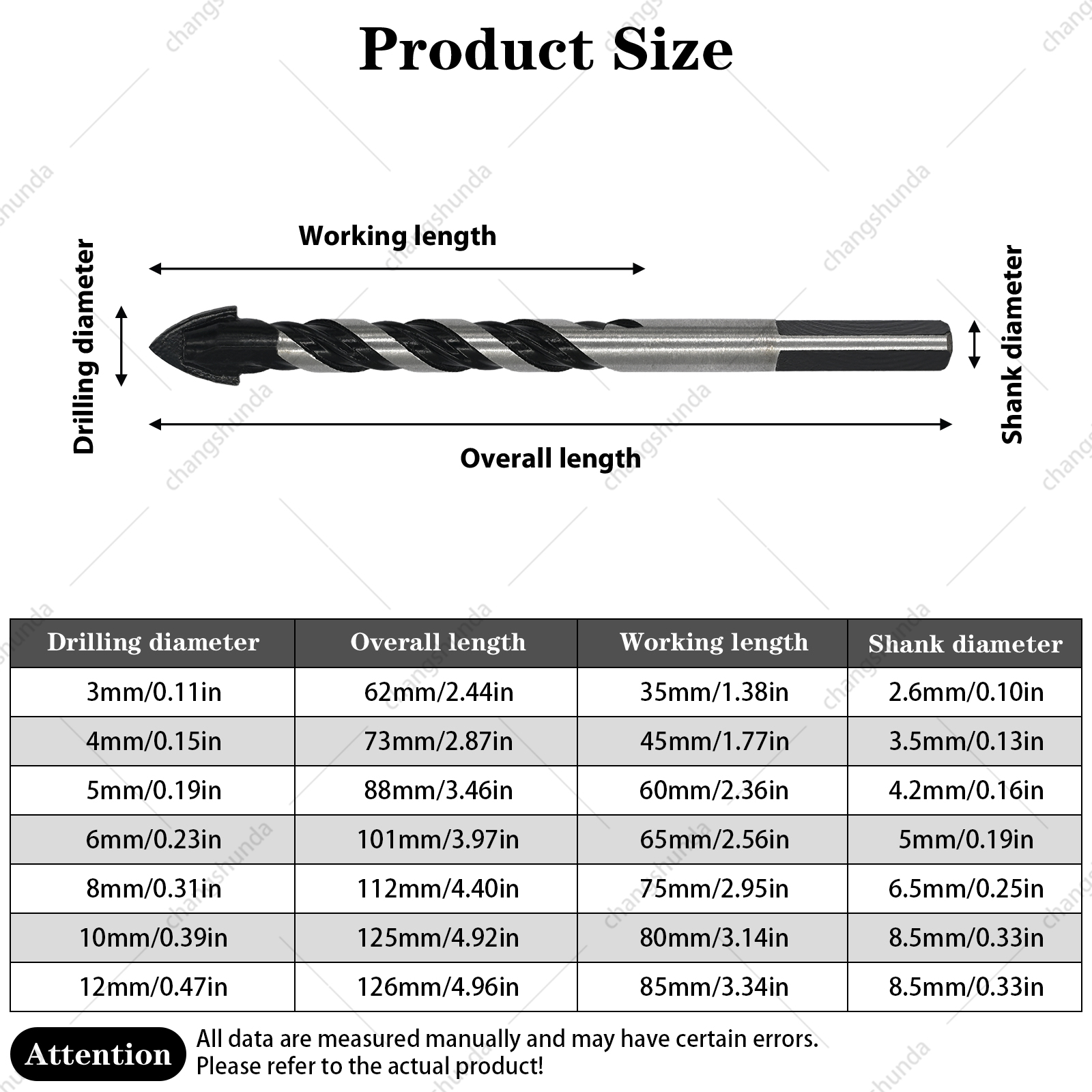

| Measured Sizes | Drilling diameter:3/4/5/6/8/10/12mm; Complete length reference as product size chart |
2.Craft & Performance
The Black Triangle Drill Bit features a high-strength integrated hard alloy tip with high hardness and strong wear resistance, which can pierce tile, brick and light concrete directly without pre-drilling. The tip of the Black Triangle Drill Bit is precisely ground to keep positioning stable, effectively avoiding hole deviation and rough edge chipping during drilling. The drill body of the Black Triangle Drill Bit is finely polished with uniform anti-rust coating, reducing friction and preventing rust after long-term storage. Two styles of U-shaped chip removal grooves are adopted on the Black Triangle Drill Bit: small sizes use single U grooves while larger sizes use double U grooves, which can discharge stone dust, wood scraps and cement residues smoothly without blockage. The round shank version of the Black Triangle Drill Bit fits standard drill chucks, while the triangular shank of the Black Triangle Drill Bit increases clamping friction to eliminate slipping under high torque drilling load. All edges of the Black Triangle Drill Bit are deburred smoothly, ensuring safe installation and stable long-hour continuous drilling operation.
Application
The multi-size Black Triangle Drill Bit meets all daily renovation and small construction drilling demands for DIY workers and professional handymen. Users can utilize the Black Triangle Drill Bit to drill neat holes on ceramic wall tiles, floor tiles, red bricks, concrete blocks, soft marble and various solid wood boards for installation work. In home renovation projects, the Black Triangle Drill Bit is widely used for punching wall-mounted shelf holes, water pipe fixing holes, curtain track mounting holes and switch box pre-drilling. For small construction teams, the Black Triangle Drill Bit handles mass light-hard material drilling tasks efficiently. The portable multi-size set of the Black Triangle Drill Bit is also suitable for outdoor decoration, garden facility installation and furniture assembly work, delivering stable smooth drilling effect on mixed hard and soft materials all year round.
Advantages

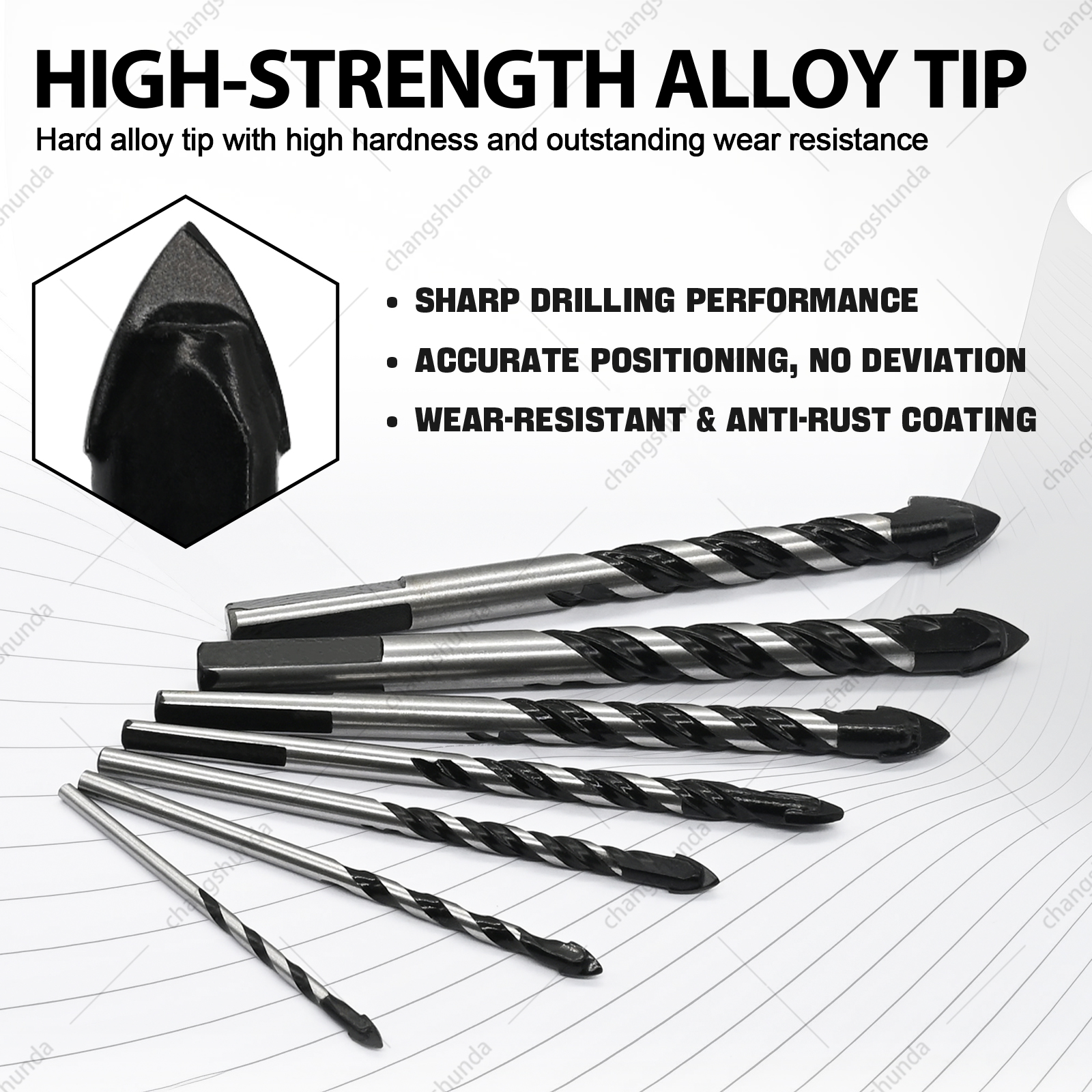

1. Hard alloy sharp tip: The wear-resistant alloy head of the Black Triangle Drill Bit breaks hard tile and brick quickly, no pre-scratching required before drilling.

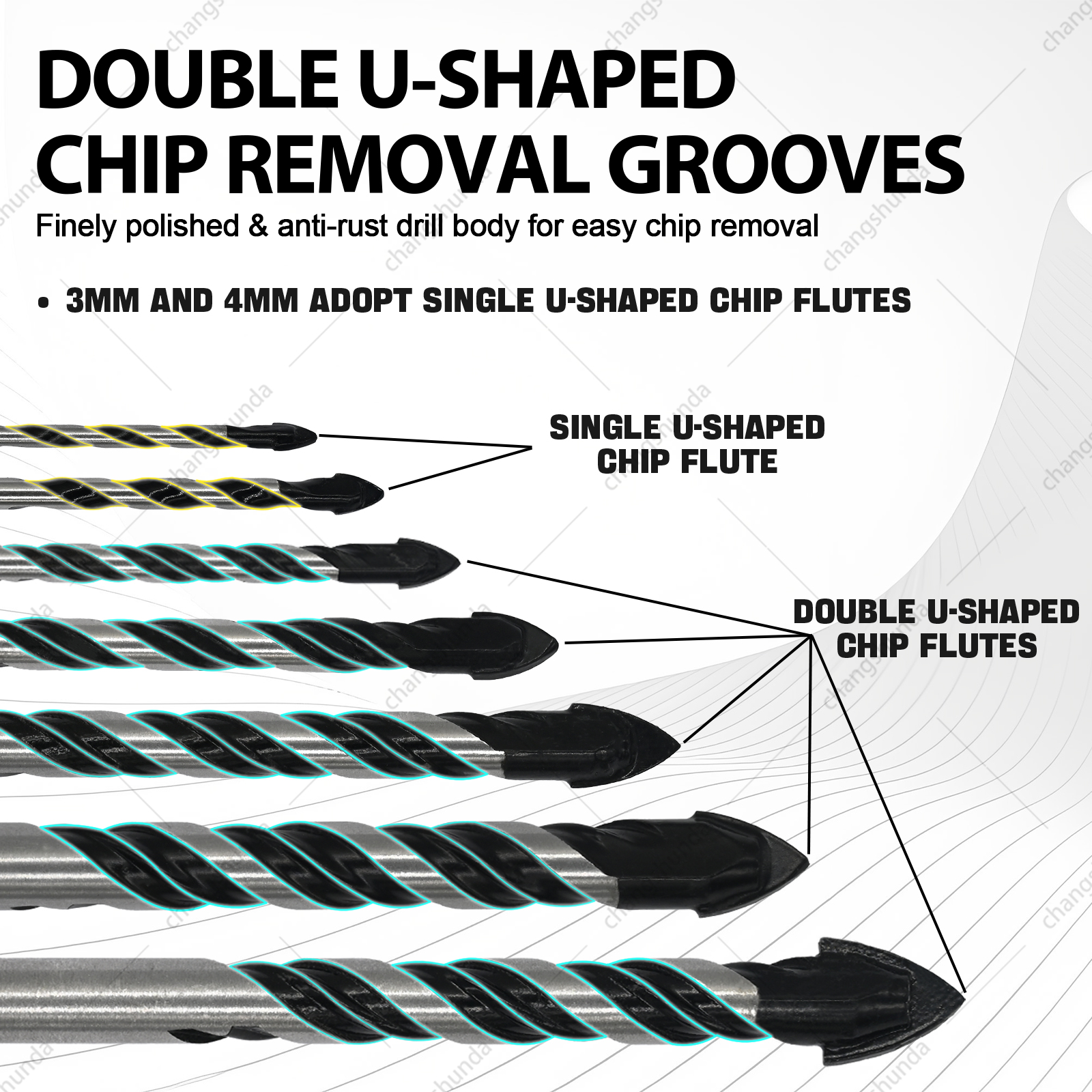

2. Dual U-shaped chip flute design: Optimized single & double U grooves of the Black Triangle Drill Bit clear cutting debris fast to avoid hole clogging and scratching workpiece surface.

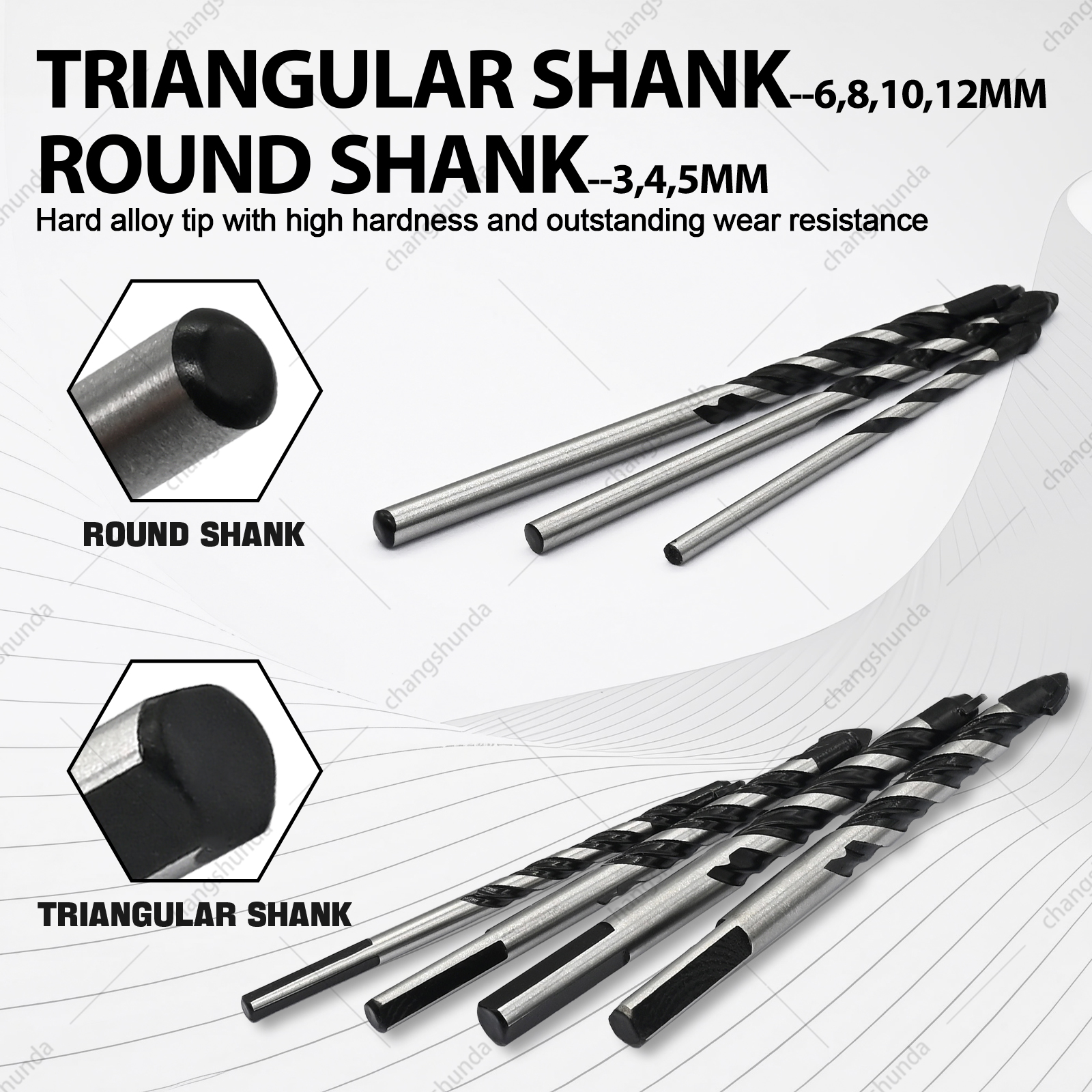

3. Dual shank optional structure: Round and triangular shank options of the Black Triangle Drill Bit achieve tight clamping for all common household electric drills, zero rotation slippage.
4. Anti-rust polished drill body: Full fine polishing and anti-corrosion coating on the Black Triangle Drill Bit resist damp construction site environment and extend service cycle.
5. Complete multi-size matching: Seven mainstream specifications of the Black Triangle Drill Bit cover micro small holes to large mounting holes, satisfying all daily drilling scenarios.
6. EU safety certified: The Black Triangle Drill Bit passes CE and EN:13236 certification, fully compliant with European hand tool safety standards for cross-border wholesale sales.
FAQ
Q1: What materials can this Black Triangle Drill Bit drill into?
A1: The Black Triangle Drill Bit works perfectly on ceramic tile, red brick, lightweight concrete, marble and solid wood, ideal for daily wall mounting and furniture punching.
Q2: Can the Black Triangle Drill Bit fit ordinary household cordless drills?
A2: Yes, two shank styles of the Black Triangle Drill Bit match all mainstream handheld electric drills and impact drills, install the Black Triangle Drill Bit directly without extra adapters.
Q3: Why does the Black Triangle Drill Bit adopt single and double U chip flutes separately?
A3: Small sizes (3mm,4mm) of the Black Triangle Drill Bit use single U grooves for lightweight debris discharge, while 5-12mm sizes adopt double wide U grooves to speed up waste removal during heavy-duty drilling.
Q4: Does the Black Triangle Drill Bit comply with European export safety standards?
A4: Absolutely, the Black Triangle Drill Bit holds CE and EN:13236 certification, which meets EU hardware safety regulations and supports retail and wholesale to all European regions.
Q5: How to prolong the service life of the Black Triangle Drill Bit?
A5: Control drilling speed properly when using the Black Triangle Drill Bit, add a small amount of water to cool the tip when drilling tiles, and clean up dust and residue on the Black Triangle Drill Bit after each use before storage.
