Sintered Diamond Core Drill Bit | High Hardness Concrete Water Drill Bit, Deep Hole Drilling for Wall/Road/Reinforced Concrete, Multiple Sizes Optional
This sintered water drill bit adopts standardized industrial-grade size design. The 330mm long effective working depth meets the deep hole drilling demands for wall through holes, air conditioning pipe holes, sewer pre-buried holes, and engineering foundation detection holes. The thickened hexagon connecting shank delivers strong torsion transmission, no slipping during high-load drilling, perfectly matching mainstream engineering water drill rigs on the market. All size parameters are manually measured with reasonable tolerance, consistent with actual construction site selection and delivery standards.
- Overview
- Recommended Products
Overview
- Drilling Efficiency: For standard C30 reinforced concrete, the 102mm specification can complete through-hole drilling within 5-8 minutes with water cooling, smooth cutting without stagnation;
- Durability: Continuous drilling of 30+ standard concrete wall holes, the diamond segment has no obvious wear, hole size remains stable;
- Hole Quality: Neat hole wall, no crack & surrounding concrete peeling, meets the acceptance standard of engineering pipeline pre-buried construction;
- Safety: Strictly follows EN13236 production standard, high concentricity of finished drill bit, low high-speed rotation vibration, effectively reducing construction safety risks.
1. Page Title
Sintered Diamond Core Drill Bit | High Hardness Concrete Water Drill Bit, Deep Hole Drilling for Wall/Road/Reinforced Concrete, Multiple Sizes Optional
2. Basic Product Specifications
| Item | Detailed Parameter |
|---|---|

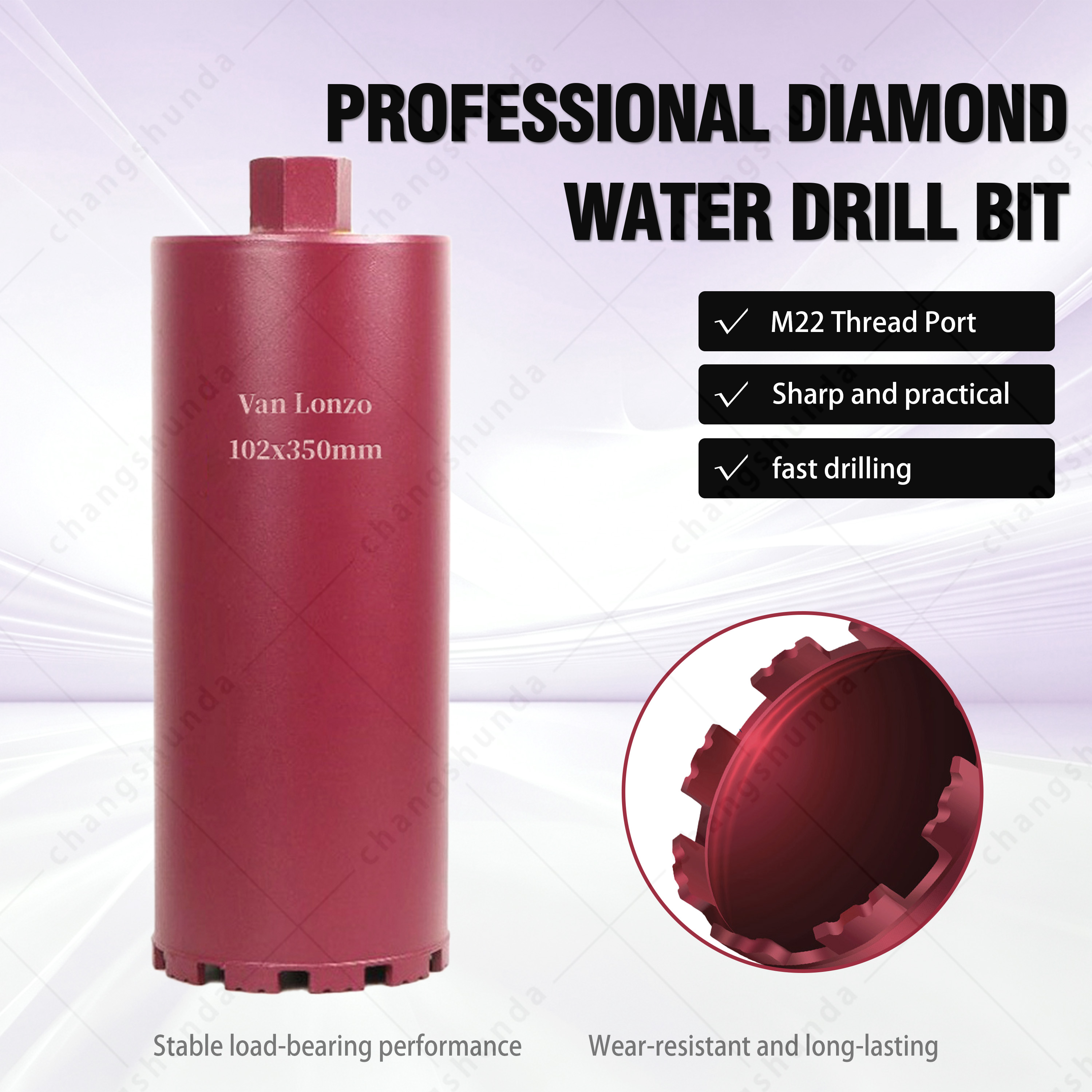

| Product Name | Sintered Diamond Core Drill Bit (Water Drill Bit) |
| Brand | Van Lonzo |
| Display Model (Picture) | 102mm Diameter × 350mm Total Length |

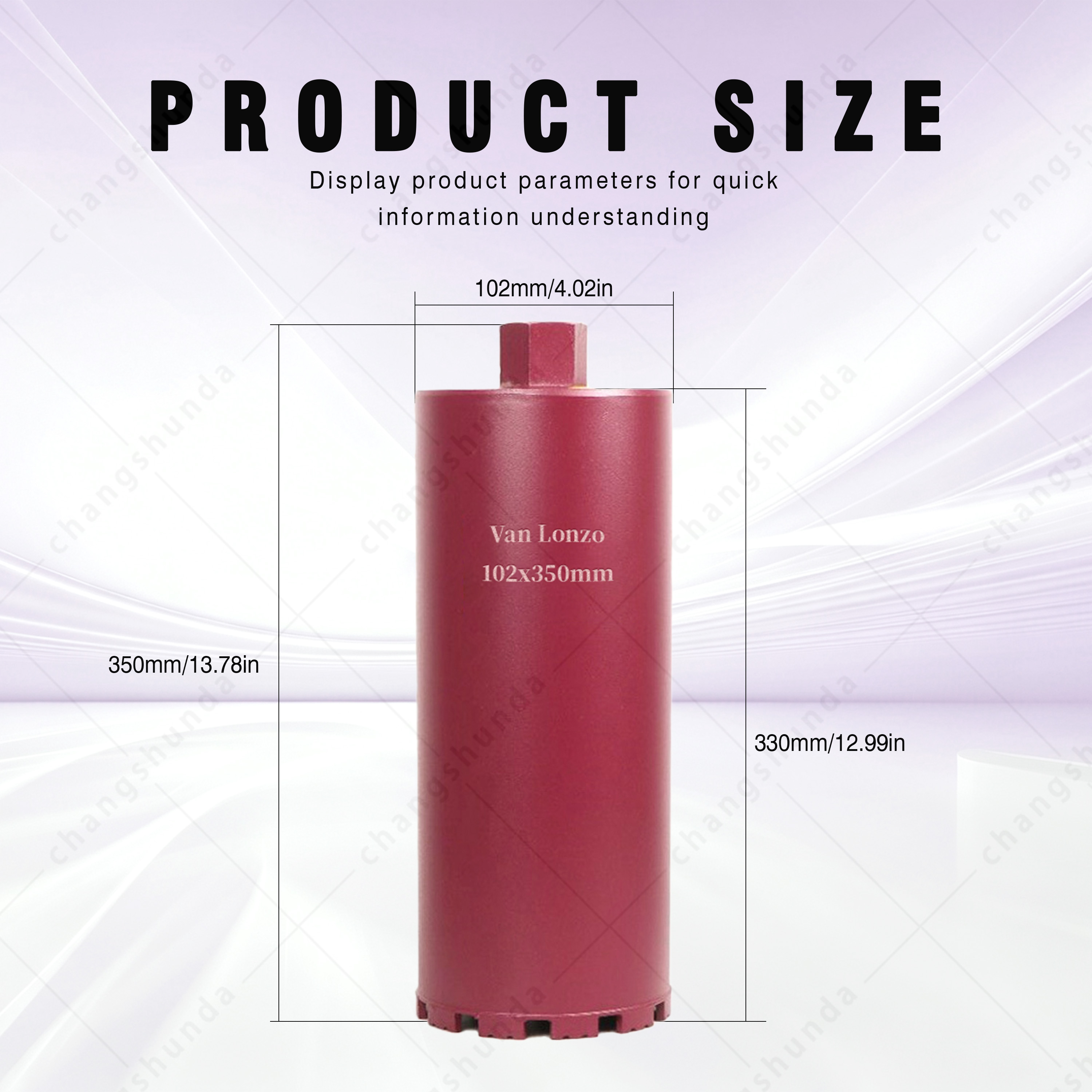

| Key Dimension Breakdown | Opening Diameter: 102mm(4.02in); Overall Length: 350mm(13.78in); Effective Working Length: 330mm(12.99in); Hexagon Connecting Shank |
| Core Craft | High temperature integrated sintering diamond segment + seamless thickened steel tube body |
| Compatible Base Material | Reinforced concrete, cement wall, asphalt road, brick wall, stone foundation, drainage pipe pre-buried holes |
| Matching Power Tools | High-power water drilling machine, engineering diamond core drilling rig |
| Operation Requirement | Must use water cooling lubrication; recommended stable low-feed drilling mode |
| Standard Available Sizes | Diameter range: 51mm/63mm/76mm/83mm/102mm/108mm/114mm/120mm etc., customized length support |
| Certification | CE Certified, complies with EU power tool accessory safety standard EN13236 |
This sintered water drill bit adopts standardized industrial-grade size design. The 330mm long effective working depth meets the deep hole drilling demands for wall through holes, air conditioning pipe holes, sewer pre-buried holes, and engineering foundation detection holes. The thickened hexagon connecting shank delivers strong torsion transmission, no slipping during high-load drilling, perfectly matching mainstream engineering water drill rigs on the market. All size parameters are manually measured with reasonable tolerance, consistent with actual construction site selection and delivery standards.
3. Core Craft & Performance Advantages

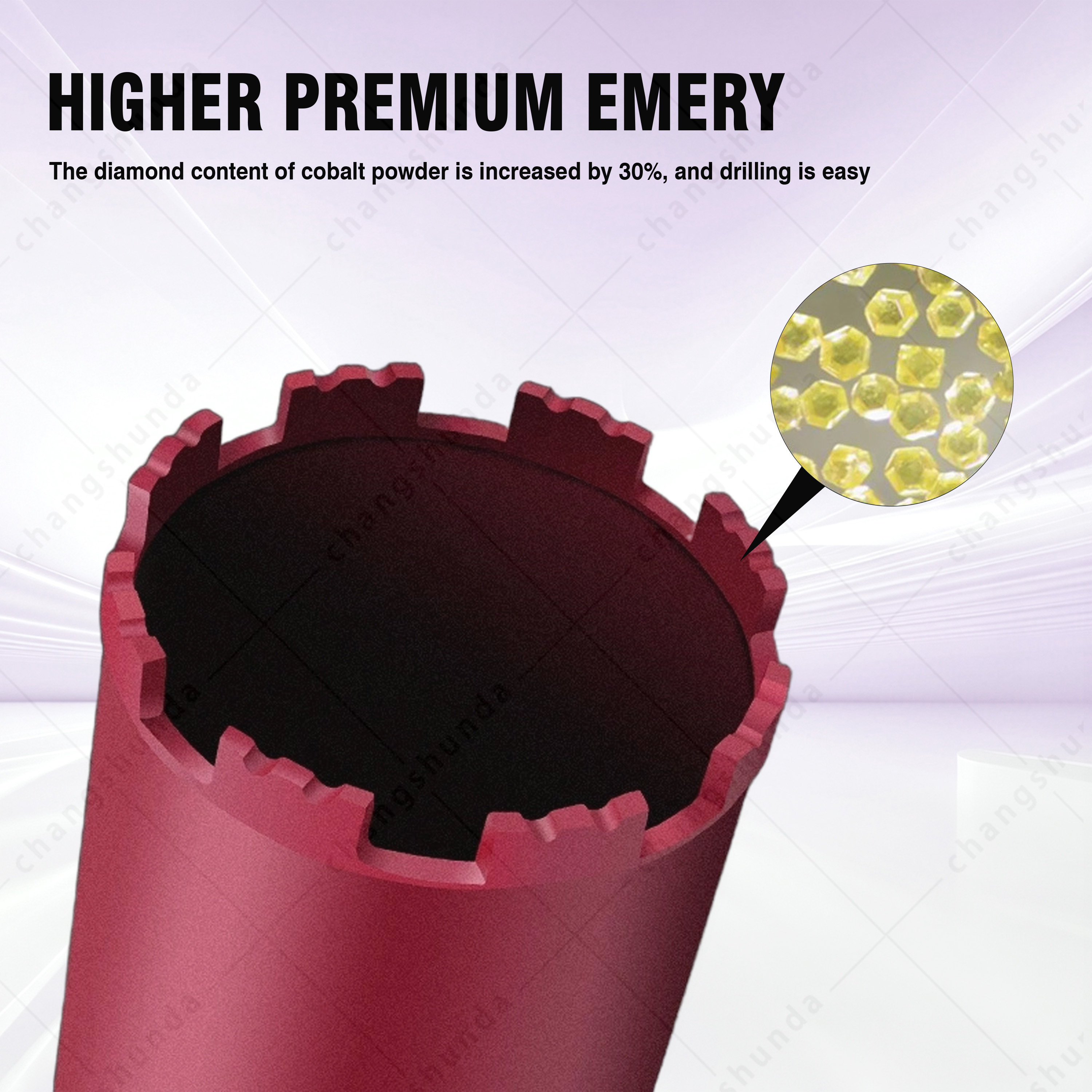

1. High-Temperature Sintered Diamond Segment, Ultra Wear-Resistant
The cutting head adopts powder metallurgy high-temperature integrated sintering process. Premium high-hardness diamond abrasive is fused with metal matrix at high pressure & high temperature, the segment and drill body combine tightly without falling teeth or segment peeling. Compared with electroplated drill bits, the service life is increased by 4-6 times, and long-term drilling keeps sharp cutting force without rapid dullness.
2. Thickened Seamless Steel Tube Body, Anti-Deformation & Anti-Breakage
The drill body uses thickened seamless precision steel pipe, finished by CNC lathe and stress relief treatment. It resists bending, twisting and cracking under long-time deep hole heavy-load drilling. Even drilling reinforced concrete with dense steel bars, the drill barrel will not deform or crack, greatly reducing tool replacement cost and construction downtime loss.
3. Special Tooth Shape Design, Fast Chip Removal & Anti-Stuck Drill
The bottom adopts segmented tooth structure with reserved chip removal gaps. Drilling debris, concrete slag and sand are quickly taken away with circulating cooling water, effectively avoiding drill jamming caused by debris accumulation. The tooth tip is optimized for positioning, no wandering or deviation at the start of drilling, ensuring round and neat hole wall, no hole expansion or edge collapse.

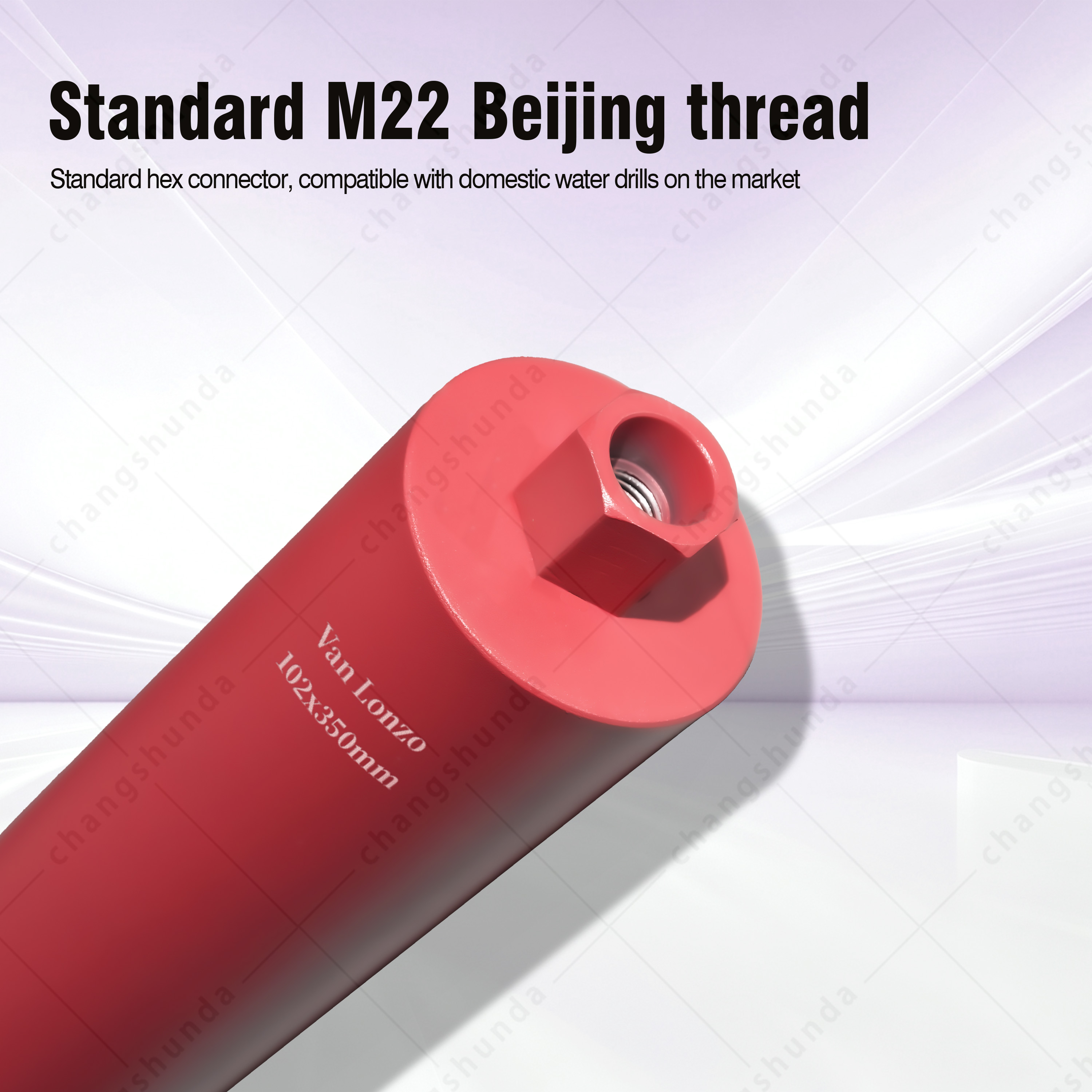

4. Upgraded Hexagon Shank, Stable Power Transmission
Standard hexagon connecting shank fits most engineering water drill chucks closely, large contact area avoids idle slipping under high torsion output. It can steadily transmit power of high-power drilling rigs, reduce vibration during deep drilling, improve drilling verticality and construction safety.
5. Stable Drilling Performance Test
4. Wide Application Scenarios
🏠 Residential & Decoration Engineering
Used for air conditioning wall through holes, range hood exhaust holes, water & electricity pipeline reserved holes, floor drain holes in home decoration and renovation projects. One drill bit meets the drilling needs of various household pipeline apertures, stable drilling does not damage the original wall structure.
🏗️ Municipal & Infrastructure Construction
Widely used in road pavement sampling detection, municipal drainage pipe pre-buried holes, bridge foundation detection holes, fire-fighting pipeline through holes, subway tunnel auxiliary hole processing. Adapt to high-intensity continuous operation requirements of engineering construction sites.
🏭 Factory & Industrial Renovation
For factory workshop equipment foundation fixing holes, cable trench through holes, ventilation duct reserved holes, equipment observation window holes. It can cope with thick concrete walls, reinforced concrete columns and other hard working conditions, reduce construction failure rate.
🛠️ Professional Drilling Service Team
Engineering drilling teams use this sintered water drill bit for long-term batch construction. Long service life reduces frequent bit replacement frequency, stable drilling speed improves overall construction efficiency, effectively controlling the comprehensive consumable cost of the team.
5. Core Product Competitive Advantages
✅ Long Service Life Sintered Segment
Abandon low-cost electroplating process, high-temperature sintered diamond segment firmly locks abrasive grains, wear resistance far exceeds ordinary water drill bits, suitable for long-term engineering batch use.
✅ Thickened Drill Barrel Tough & Durable
High-quality seamless steel pipe main body, anti-torsion and anti-bending, tough enough to cope with accidental steel bar impact during drilling, not easy to crack and scrap.
✅ Anti-Stuck Drill Chip Removal Structure
Reasonable tooth gap design cooperates with water cooling to discharge slag quickly, solve the common pain point of drill jamming in concrete drilling, reduce construction trouble and bit loss caused by stuck drill.
✅ Universal Hexagon Shank Wide Compatibility
Standard hexagon interface matches mainstream domestic and imported engineering water drill rigs, no adapter needed for direct installation, convenient for tool matching and site use.
✅ Strict Factory Inspection & Global Compliance
Each batch of drill bits passes concentricity test, segment firmness test and drilling durability test before delivery. CE & EN13236 certified, no compliance barrier for exporting to Europe, America, Southeast Asia and other global markets.
✅ Full Size Customization Support
Complete conventional diameter specifications in stock, support customized drill bit length, special segment formula and OEM outer packaging for distributors and engineering purchasers.
6. Manufacturer Introduction: Changshunda Diamond Tools
Changshunda Factory is located in Diamond Industrial Park, Qinghe Town, Jishan County, Yuncheng City, Shanxi Province, focusing on R&D and production of sintered diamond core drill bits, diamond saw blades and other engineering diamond tools for more than 10 years.
We are equipped with full automatic sintering production line, CNC precision machining equipment and professional durability testing laboratory, realize full self-control of raw material proportioning, sintering molding, finished inspection. Our R&D team optimizes diamond formula and segment structure for many years, continuously improving drilling efficiency and service life of water drill bits.
We have long-term stable supply cooperation with global hardware distributors, engineering tool suppliers and cross-border e-commerce merchants covering more than 30 countries and regions. We provide factory direct supply price, stable monthly production capacity, 7-15 days fast delivery cycle, and support one-stop customized services such as size customization, brand OEM, packaging ODM.
7. FAQ
Q1: Can this sintered water drill bit drill reinforced concrete?
A1: Yes, it is specially designed for reinforced concrete. The high-hardness sintered diamond segment can cut through ordinary steel bars smoothly. Please keep stable water cooling and uniform feed speed during operation.
Q2: Is water cooling necessary when using this drill bit?
A2: Mandatory. Continuous water cooling can take away drilling high temperature, prevent diamond segment from burning and invalid abrasion, meanwhile flush drilling slag to avoid stuck drill, effectively extend the drill bit service life.
Q3: What drilling rigs can this hexagon shank drill bit match?
A3: It fits most mainstream vertical engineering water drill machines on the market with hexagon chuck. If your drill rig is with round shank interface, we can provide matched adapter or customized round shank drill bits.
Q4: How to judge the drill bit needs to be replaced?
A4: When the drill tooth segment is worn flat obviously, drilling speed becomes extremely slow and cannot cut into the wall normally, it means the segment is worn out and needs to be replaced in time.
Q5: What is the delivery time for bulk orders?
A5: Conventional in-stock sizes can be delivered within 3 working days; customized size, packaging and logo orders take 7-15 working days according to order quantity, our factory has sufficient stable production capacity to guarantee on-time delivery.
