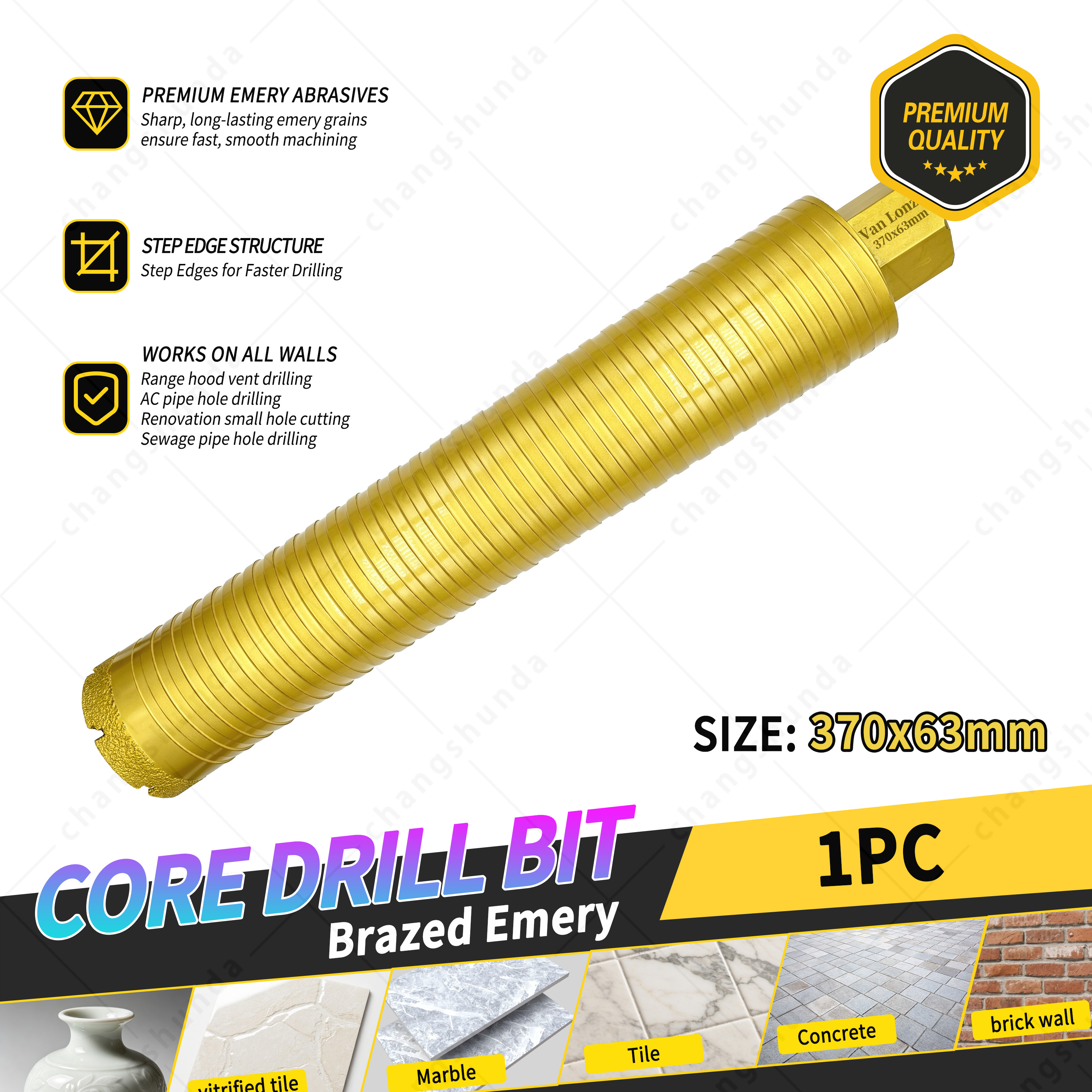

Brazed Diamond Core Drill Bit | Vacuum Brazed Water Drill Bit, Fast Drilling for Concrete/Brick Wall/Masonry, Low Vibration Long Lifespan Multiple Sizes Available

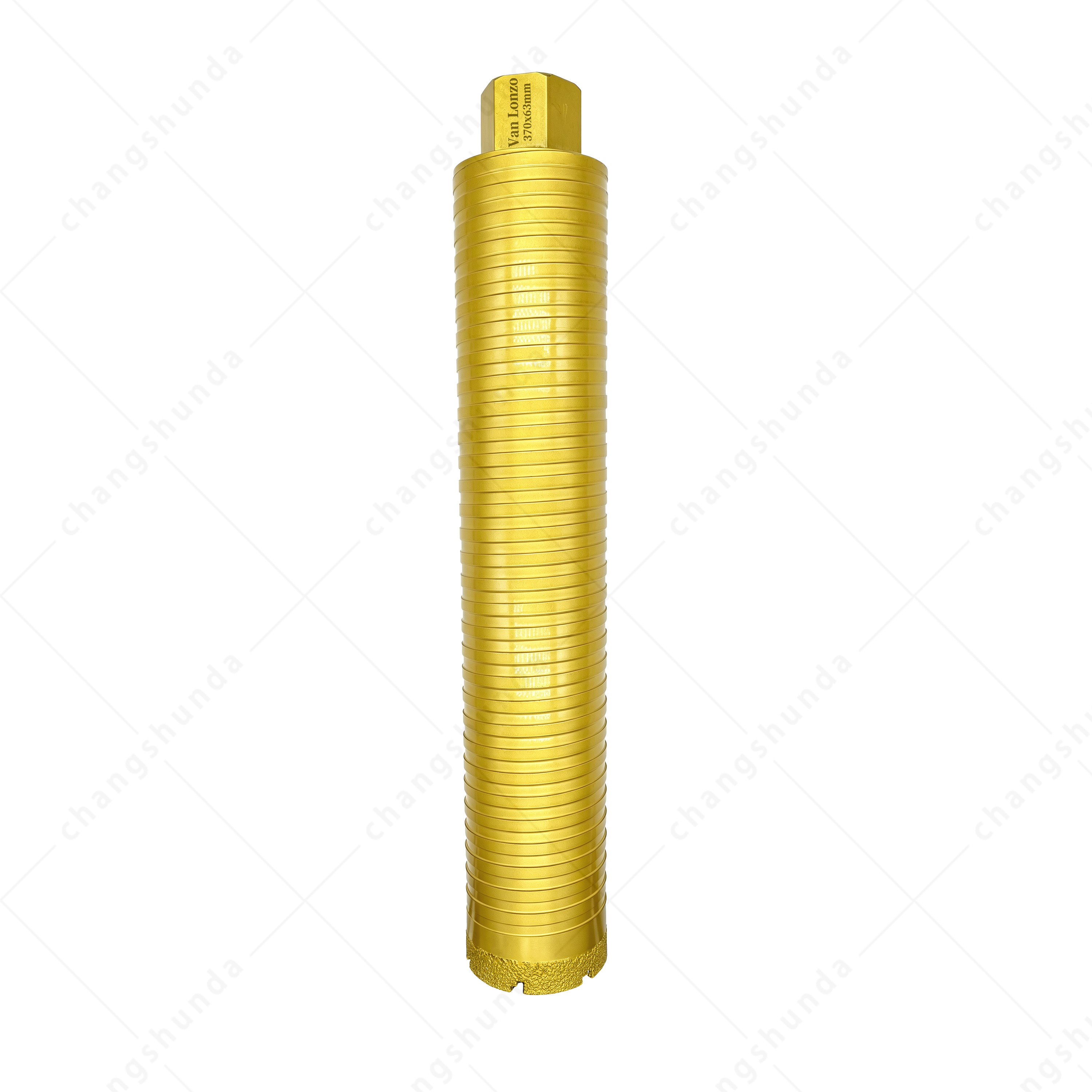

This 63×370mm brazed water drill bit adopts industrial spiral rib anti-vibration barrel design. 340mm effective working depth fully meets deep through-hole demands for air-conditioning holes, exhaust holes, pipeline pre-buried holes and engineering detection holes. 15mm high diamond grit height reserves sufficient wear allowance, greatly extending service life. Matched standard hexagon connecting shank fits mainstream engineering water drill machines tightly, no torsion slipping during heavy-load drilling. All dimensions are manually measured with standard tolerance range, matching actual construction procurement & usage standards.
- Overview
- Recommended Products
Overview
- Guides cooling water & drilling residue to discharge outward rapidly, prevents slag accumulation from causing drill stuck;
- Weakens high-speed rotation vibration, improves drilling verticality, avoids hole deflection & wall edge chipping;
- Thickened seamless steel barrel with stress relief treatment, anti-bending & anti-deformation for deep hole long-time operation.
- Efficiency: For aerated brick & common concrete, 63mm bit finishes standard wall through-hole quickly with water cooling, smooth cutting without stagnation;
- Durability: Continuous drilling 200+ brick wall holes, diamond segment has no obvious wear, aperture stays consistent;
- Hole Quality: Neat round hole wall, no surrounding concrete cracking & peeling, meets pipeline pre-buried engineering acceptance standard;
- Stability: High concentricity finished product, low rotation vibration, reduces operation fatigue and safety hazards for construction workers.
1. Page Title
Brazed Diamond Core Drill Bit | Vacuum Brazed Water Drill Bit, Fast Drilling for Concrete/Brick Wall/Masonry, Low Vibration Long Lifespan Multiple Sizes Available
2. Basic Product Specification Table
| Item | Detailed Parameter |
|---|---|
| Product Name | Brazed Diamond Core Drill Bit (Brazed Water Drill Bit) |
| Brand | Van Lonzo |

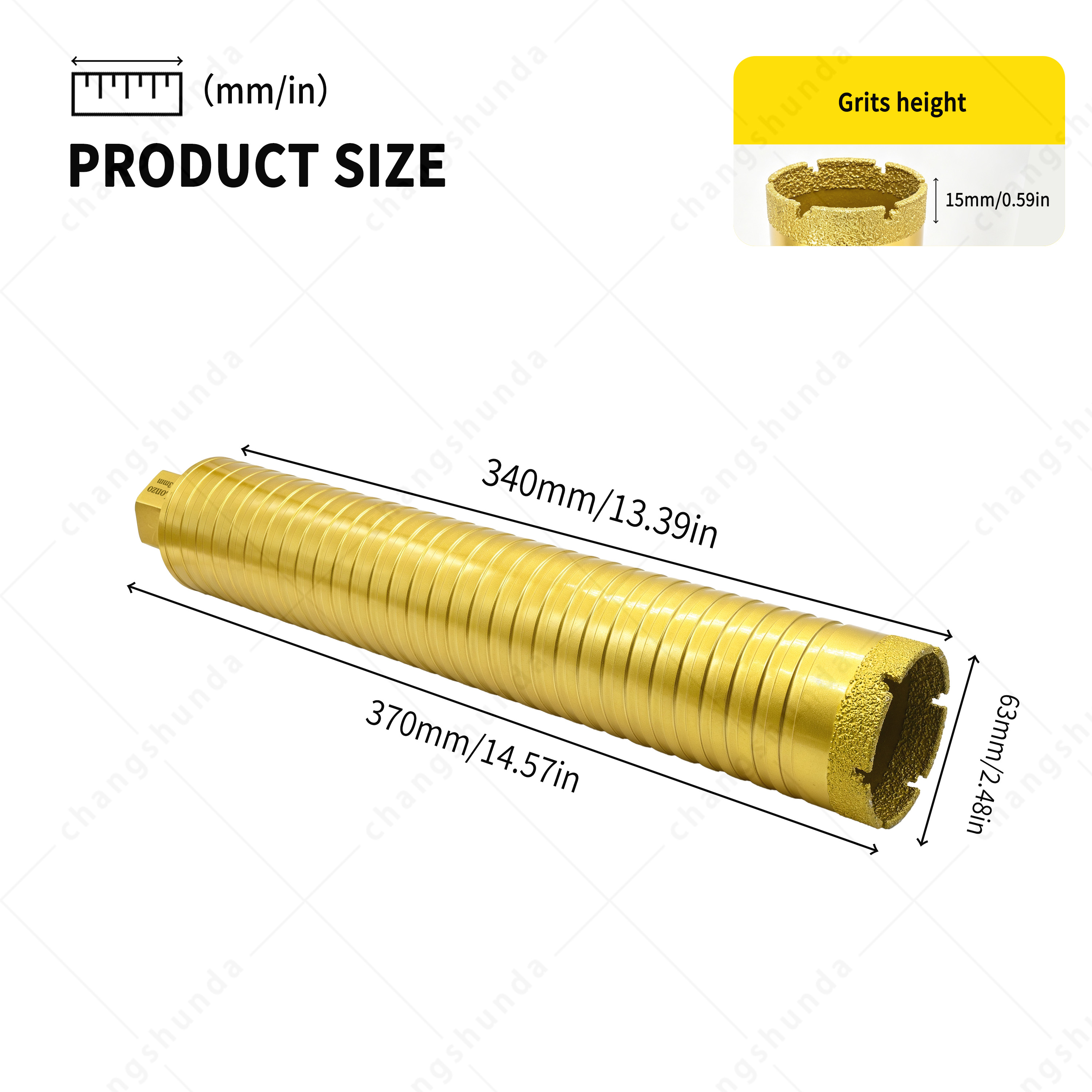

| Display Model Spec | Diameter: 63mm/2.48in; Total Length: 370mm/14.57in; Effective Working Length:340mm/13.39in |
| Diamond Segment Parameter | Grits Height:15mm/0.59in |
| Core Technology | High-strength vacuum brazing process + segmented diamond teeth + anti-vibration spiral rib drill barrel |
| Compatible Materials | Common concrete, aerated brick, red brick wall, masonry, cement block, light reinforced concrete |
| Matching Equipment | Engineering water drilling rig, high-power vertical core drilling machine |
| Operation Requirement | Support wet water cooling drilling; low stable feed speed recommended |
| Standard Optional Sizes | 51mm/63mm/76mm/83mm/102mm/108mm etc., support customized length & special shank |
| Safety Certification | CE Certified, Complies with EU EN13236 Power Tool Accessory Safety Standard |
This 63×370mm brazed water drill bit adopts industrial spiral rib anti-vibration barrel design. 340mm effective working depth fully meets deep through-hole demands for air-conditioning holes, exhaust holes, pipeline pre-buried holes and engineering detection holes. 15mm high diamond grit height reserves sufficient wear allowance, greatly extending service life. Matched standard hexagon connecting shank fits mainstream engineering water drill machines tightly, no torsion slipping during heavy-load drilling. All dimensions are manually measured with standard tolerance range, matching actual construction procurement & usage standards.
3. Core Craft & Performance Advantages

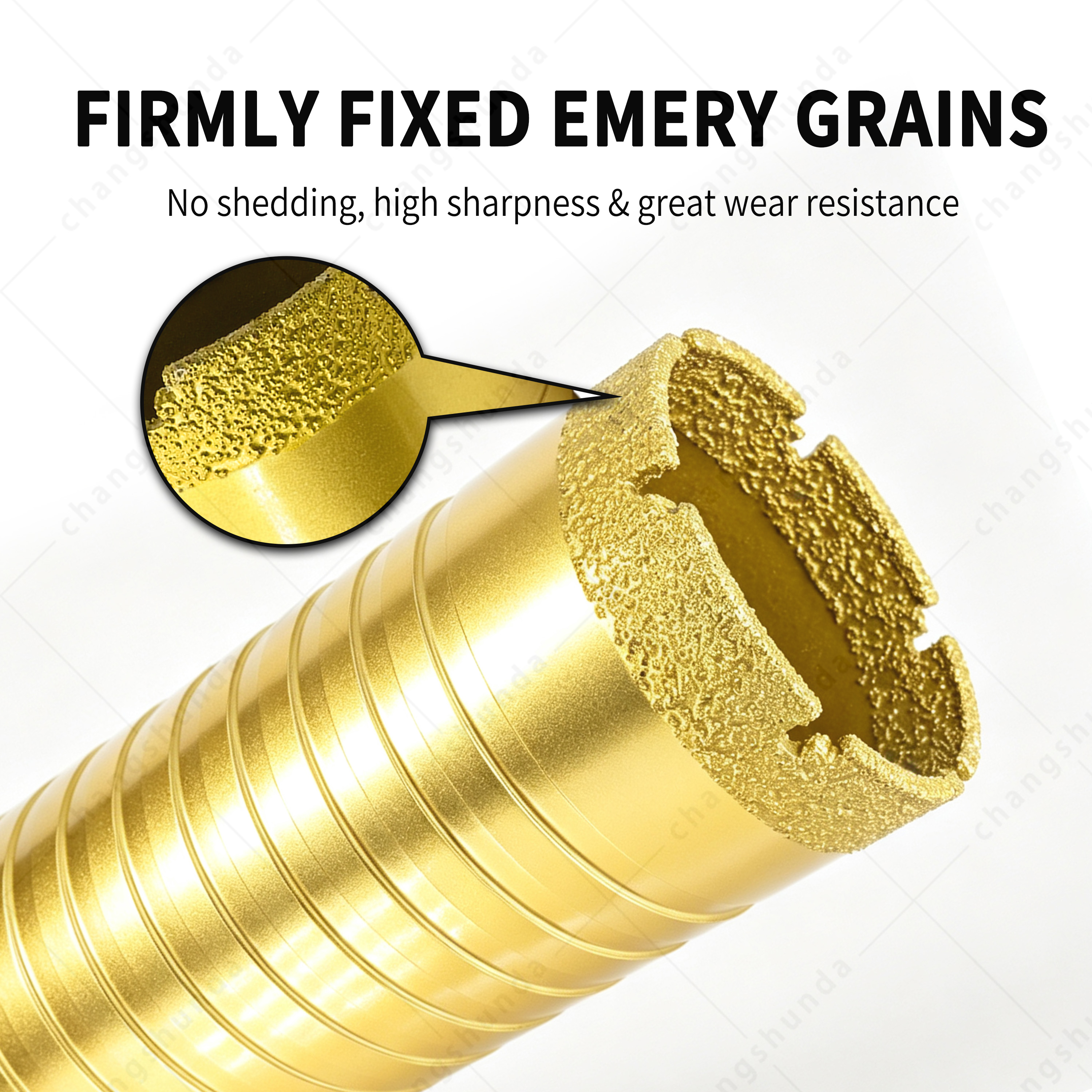

1. High-Adhesion Vacuum Brazing Technology, No Tooth Falling & Stable Sharpness
Adopts closed-loop high-temperature vacuum brazing craft, diamond grains are firmly welded on the segment base with strong bonding force, effectively solving common defects of electroplated bits like easy sand falling & fast dullness. The cutting edge maintains stable sharpness in long-term continuous drilling, no frequent grinding or replacement required.
2. 15mm Super High Diamond Grit Height, Extra Long Service Life
Upgraded 15mm grit height design, far higher than conventional 8-10mm grit bits. Large wear margin supports hundreds of holes drilling on brick wall & concrete materials, effectively reducing bit replacement frequency and comprehensive construction consumable cost.
3. Spiral Rib Anti-Vibration Drill Barrel, Smooth Drilling & Low Jamming Risk
Unique outer spiral rib structure on drill barrel:
4. Optimized Segmented Tooth Structure, Fast Positioning & Efficient Cutting
Segmented tooth layout with independent chip removal gaps, quick positioning at initial drilling stage without wandering deviation. Multiple cutting edges share cutting pressure, drilling speed is 20%-30% faster than ordinary sintered bits on brick & lightweight concrete, improving overall construction progress.

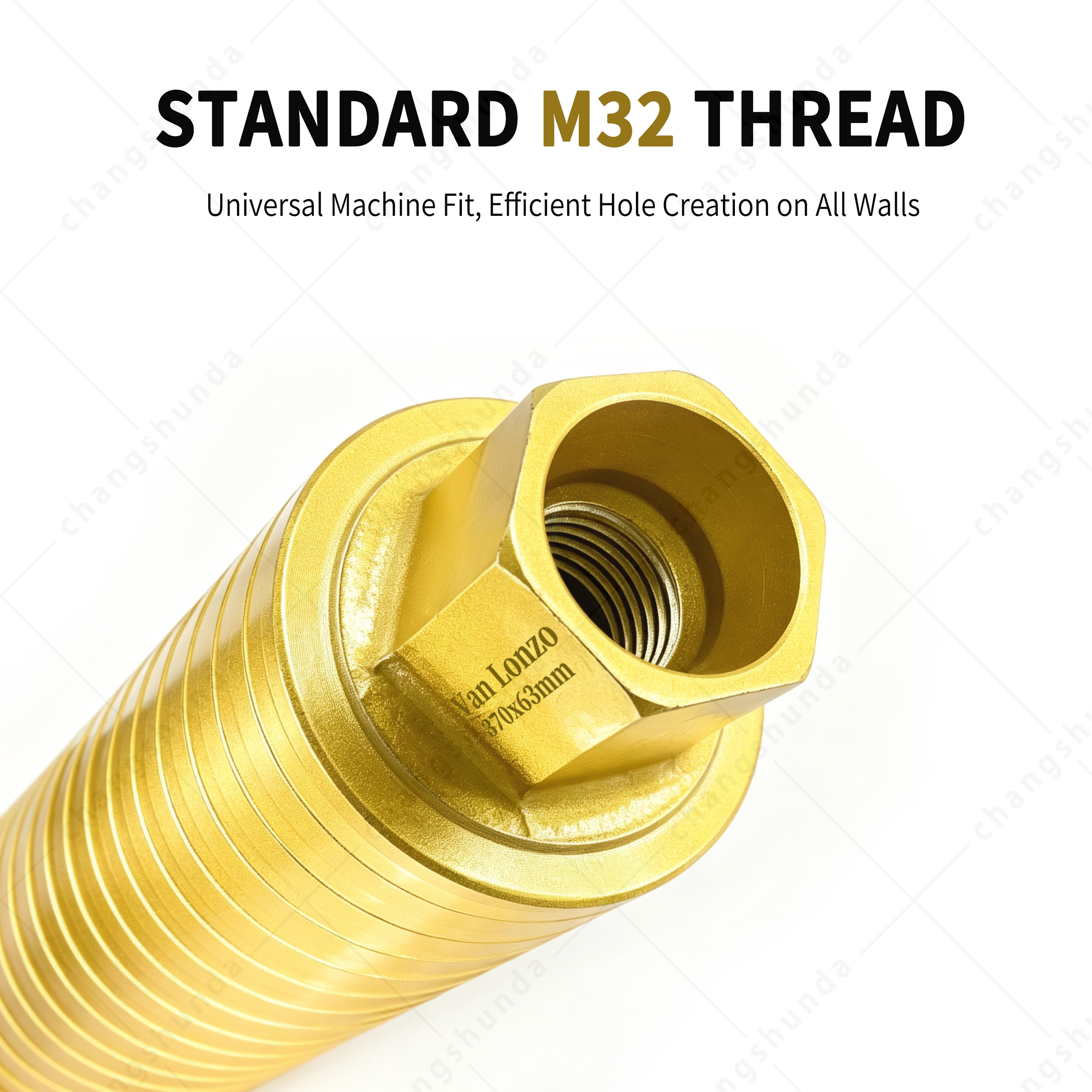

5. Hexagon Standard Shank, Wide Tool Compatibility
Universal hexagon connecting shank fits most mainstream domestic & imported vertical water drill rigs, no extra adapter needed for direct installation. Large contact area transmits torsion evenly, avoids idle slipping under high power output, reduces machine vibration and improves operation safety.
Practical Drilling Performance
4. Wide Application Scenarios
🏠 Home Decoration & Renovation Projects

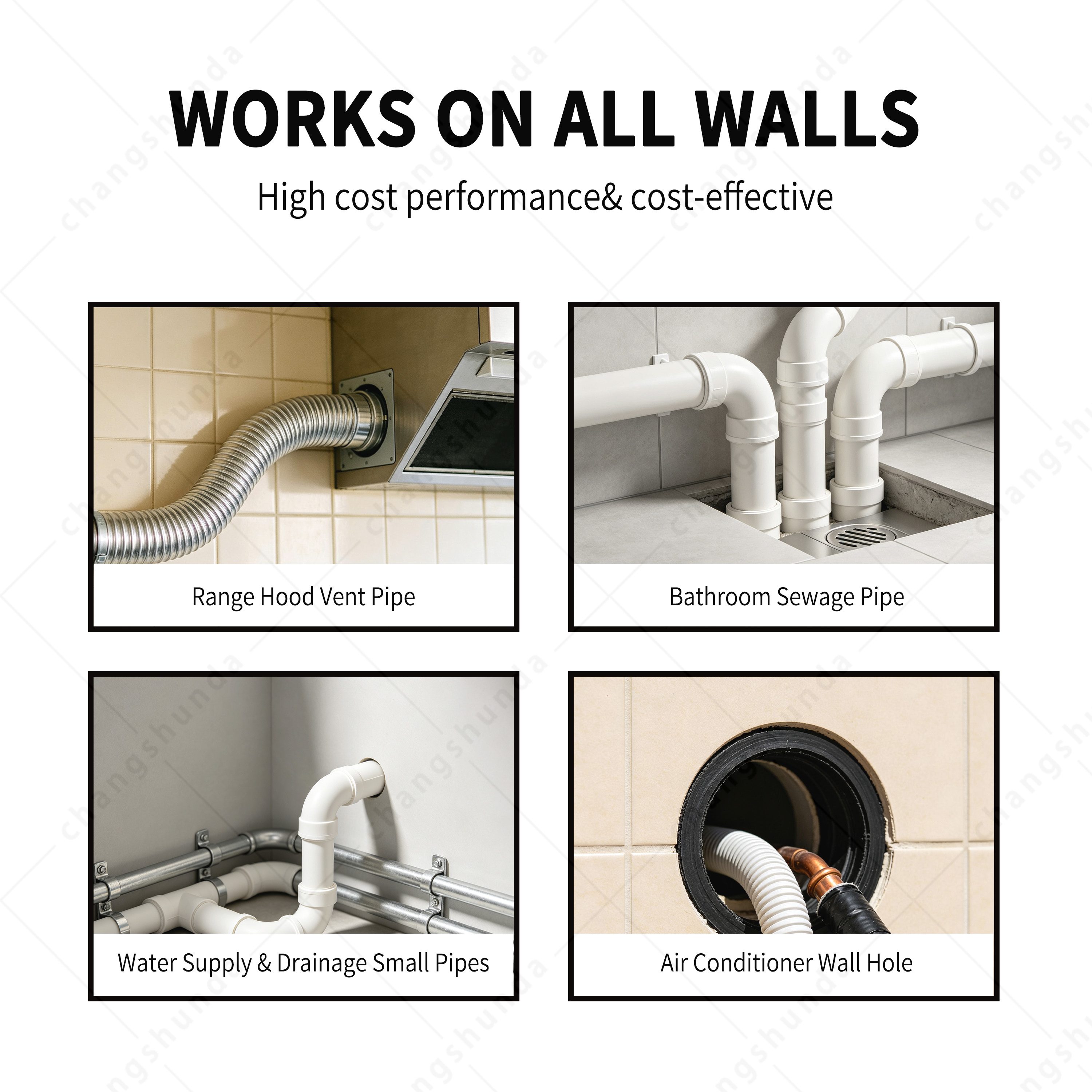

Perfect for air conditioner wall through holes, range hood exhaust holes, hydropower pipeline reserved holes, floor drain holes in residential renovation. Efficient drilling does not damage original wall structure, ideal for decoration teams daily batch construction.
🏗️ Municipal & Infrastructure Construction
Suitable for municipal road sampling inspection, fire pipeline through holes, drainage pipe pre-buried holes, building foundation detection holes. Adapt to long-time high-intensity continuous operation of engineering construction sites.
🧱 Masonry & Civil Engineering Construction
Works well on red brick wall, aerated block, cement brick, masonry wall and other building materials, widely used in rural housing construction, old building reconstruction, wall modification drilling work.
🛠️ Professional Drilling Service Teams
Brazed bits balance drilling speed and service life perfectly. Low replacement frequency cuts downtime loss, stable drilling efficiency raises team daily construction volume, effectively controlling long-term tool procurement cost.
5. Core Product Competitive Advantages
✅ Vacuum Brazed Firm Diamond Teeth
Vacuum brazing locks diamond grains tightly, no tooth shedding during hard material drilling, sharpness lasts long, outperforms ordinary electroplated bits comprehensively.
✅ 15mm High Grit Height Design
Extra large wear allowance doubles service life vs conventional short grit bits, reduces purchase frequency and overall cost for engineering users.
✅ Spiral Rib Anti-Vibration & Anti-Stuck Design
Built-in spiral drainage & chip removal structure solves drill stuck pain point, low vibration ensures straight holes, less wall damage and post-processing repair work.
✅ Thickened Steel Drill Barrel Tough & Durable
CNC processed seamless steel barrel with tempering treatment, anti-torsion & anti-impact, not easy to deform even with occasional steel bar collision.
✅ Global Authoritative Compliance Certification
Pass CE & EN13236 EU tool safety certification, qualified for export to Europe, America, Southeast Asia and other global markets, no compliance risks for cross-border distributors.
✅ Full Size & Customization Support
Rich conventional diameter sizes in stock, support customized length, special shank type, OEM packaging & brand LOGO service for global wholesalers and engineering purchasers.
6. Manufacturer Introduction: Changshunda Diamond Tools
Changshunda Factory locates in Diamond Industrial Park, Qinghe Town, Jishan County, Yuncheng City, Shanxi Province, specialized in R&D and production of brazed diamond core drill bits, sintered water drill bits, diamond saw blades for over 10 years.
Equipped with full automatic vacuum brazing production line, CNC precision lathes, concentricity detector and durability test lab, we control full production chain from raw material matching, brazing molding to finished product inspection. Senior R&D team optimizes diamond formula and tooth structure year by year, upgrading drilling efficiency and wear resistance continuously.
We supply steady products to hardware distributors, engineering suppliers and cross-border sellers across 30+ countries and regions. We offer factory direct price, stable monthly output, 7-15 days fast lead time, and one-stop customization service including size, OEM brand, ODM packaging.
7. Common FAQ
Q1: What materials can this brazed water drill bit drill?
A1: It works great for aerated brick, red brick, masonry block, ordinary concrete, lightweight reinforced concrete. Not recommended for dense thick steel bar reinforced concrete, sintered core drill bits are more suitable for heavy rebar scenarios.
Q2: Is water cooling mandatory for use?
A2: Yes. Continuous water cooling takes away drilling high temperature to prevent brazing layer burnout, meanwhile washes away drilling residue to avoid drill stuck, greatly prolongs bit service life.
Q3: Which drilling machines match the hexagon shank?
A3: Compatible with most mainstream vertical engineering water drill rigs with hexagon chuck. Round shank customization or matched adapter can be provided if you use round shank drill machines.
Q4: When does the drill bit need replacement?
A4: When the 15mm diamond grit is worn flat obviously, drilling speed drops sharply and cannot cut into wall normally, the segment reaches wear limit and needs timely replacement.
Q5: What is the bulk order delivery time?
A5: Conventional in-stock sizes ship within 3 working days; customized size, packaging and logo orders take 7-15 working days based on order quantity, stable factory capacity guarantees on-time delivery.
