5/8-11 Vacuum Brazed Diamond Hole Saw Travel Kit with 115mm Dry Cutting Disc, Multi-Size Drill Bits + Dual Adapters Portable Travel Tool Set for Tile Marble Granite Stone Drilling & Cutting
- Overview
- Application
- Advantages
- FAQ
- Recommended Products
Overview
Changshunda Manufacturer Intro
Changshunda Hardware Tools Factory located in Shanxi, China, is a professional manufacturer focusing on vacuum brazed diamond tools, and the flagship portable product is the 5/8-11 Hole Saw Travel Kit with Diamond Cutting Disc. We have more than 12 years of R&D and mass production experience in diamond perforation and cutting tools, equipped with full-automatic CNC lathes, high-temperature vacuum brazing furnaces and finished product durability testing assembly lines. Every batch of the 5/8-11 Hole Saw Travel Kit with Diamond Cutting Disc will undergo strict cutting sharpness and grit firmness aging tests before delivery to ensure stable consistent quality.
We independently develop the vacuum brazing exposed sand formula and customized travel bag packaging scheme for this kit, optimize diamond grain distribution to balance cutting sharpness and wear resistance. As the original manufacturer, we support flexible OEM & ODM customized services for global independent station sellers, offline hardware distributors and cross-border e-commerce merchants: customizable laser brand logo marking on drill bodies, personalized printed patterns on travel storage bags and adjustable internal tool size collocation. Our factory has a stable monthly supply capacity of 40,000 sets of this travel kit, with complete export certification documents, providing one-stop technical parameter guidance and defective product free replacement after-sales support for all bulk orders.
1. Product Specification
This all-in-one 5/8-11 Hole Saw Travel Kit with Diamond Cutting Disc is a portable integrated stone processing tool set designed for mobile construction workers and DIY enthusiasts. The complete 5/8-11 Hole Saw Travel Kit with Diamond Cutting Disc integrates multi-spec 5/8-11 thread diamond hole saw bits, two interchangeable conversion adapters and a matching 115mm vacuum brazed cutting disc, realizing drilling and cutting dual functions in one travel kit.
All hole saw bits inside the 5/8-11 Hole Saw Travel Kit with Diamond Cutting Disc adopt unified 5/8-11 standard thread shank. Standard size drill bits have 60mm overall length and 35mm effective working depth, while the lengthened 10mm drill reaches 75mm total length with 50mm deep cutting stroke, and the deep-cut 50mm drill supports 45mm working depth. The matched 115mm cutting disc has a 22mm inner bore, exclusively for angle grinders. Equipped with hexagonal shank and SDS-plus dual adapters, the hole saws can be matched with angle grinders, cordless electric drills and SDS hammer drills, greatly expanding tool compatibility. The lightweight portable travel storage bag of the 5/8-11 Hole Saw Travel Kit with Diamond Cutting Disc features classified inner partitions, which can firmly fix all drill bits, adapters and cutting discs, avoiding collision abrasion during outdoor carrying and long-distance travel construction. All tools are suitable for vitrified tile, marble, granite, quartz stone and natural slate dry processing.
2. Craft & Performance

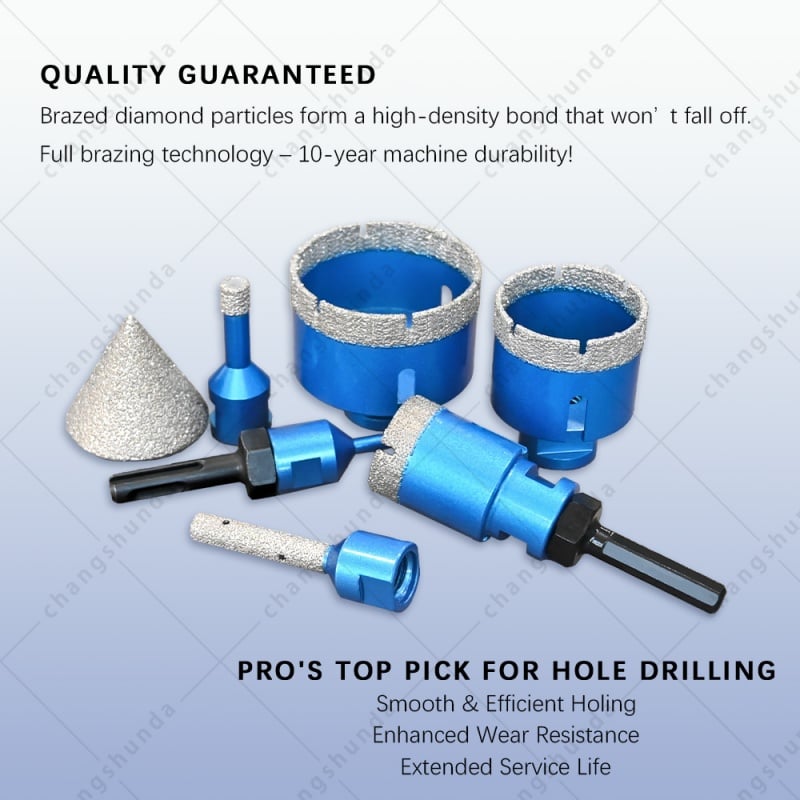

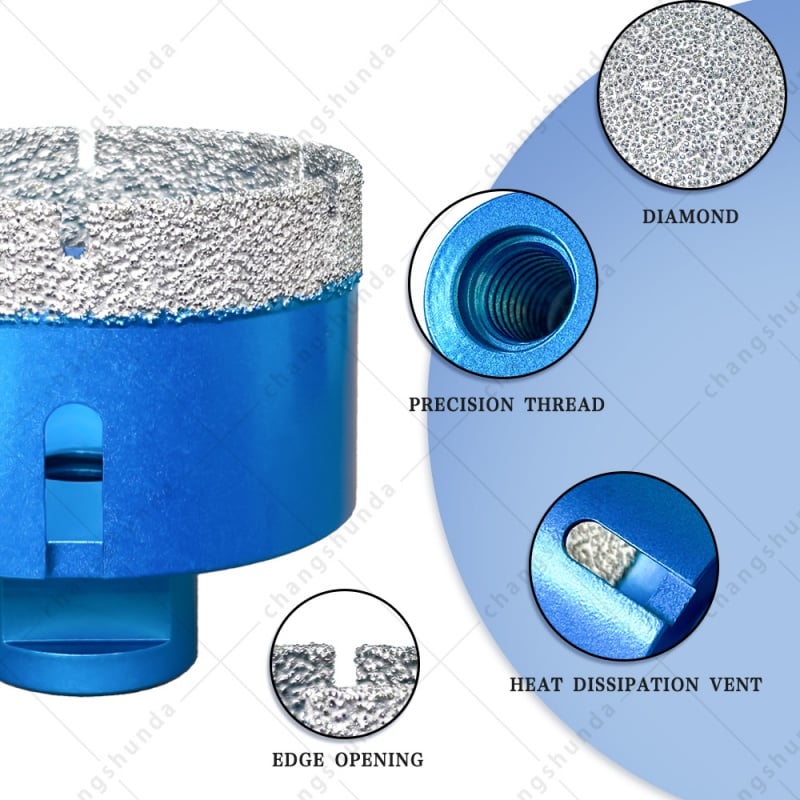

All cutting tools in the 5/8-11 Hole Saw Travel Kit with Diamond Cutting Disc adopt high-temperature vacuum brazed exposed diamond sand core craft. Industrial diamond abrasives are tightly welded on the cutting edge, completely solving the grit shedding defect of low-cost electroplated tools, and can stably realize water-free dry cutting without preparing cooling water for construction sites. The blue anti-rust coated drill bodies of the 5/8-11 Hole Saw Travel Kit with Diamond Cutting Disc reserve side chip removal windows, which can quickly discharge stone powder during continuous drilling, effectively preventing drill jamming and overheating failure. The two multi-functional adapters expand the matching range of the whole set, allowing the hole saw bits to switch freely between different power tools. Below is the standardized specification table of the product:

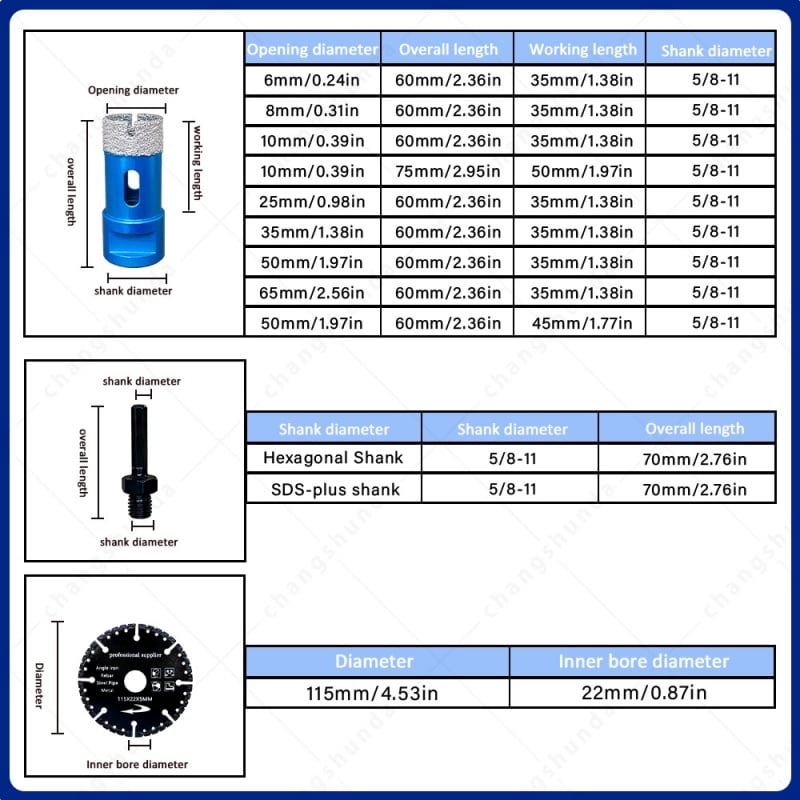

| Item | Complete Details |
| Place of Origin | Shanxi, China |
| Brand Name | VonLonzo (Changshunda Factory Self-owned Brand) |
| Model Number | 5/8-11 TRAVEL-KIT |
| Certification | EN 13236 / ISO 9001 / CE EU Safety Certification |
| Set Contents | Multi-size 5/8-11 thread diamond hole saw bits, Hexagonal shank adapter, SDS-plus shank adapter, 115mm vacuum brazed stone cutting disc, portable travel storage bag |
| Hole Saw Standard Thread | 5/8-11 Universal Thread |
| Standard Drill Sizes | 6/8/10/25/35/50/65mm |
| Standard Drill Parameter | Overall Length 60mm, Working Cutting Depth 35mm |
| Special Lengthened Spec | 10mm drill (75mm total length), 50mm deep-cut drill (45mm working depth) |

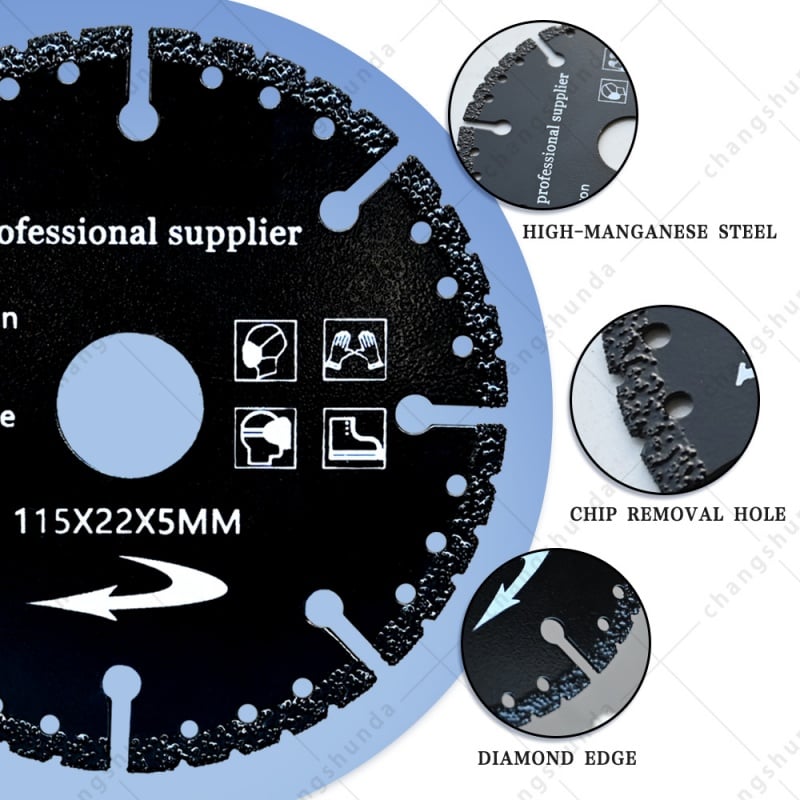

| Cutting Disc Parameter | Outer Diameter 115mm, Inner Bore 22.23mm |
| Core Production Craft | High-Temperature Vacuum Brazed Exposed Diamond Grit Dry Cutting Technology |
| Compatible Power Tools | Angle Grinders, Cordless Electric Drills, SDS-plus Hammer Drills |

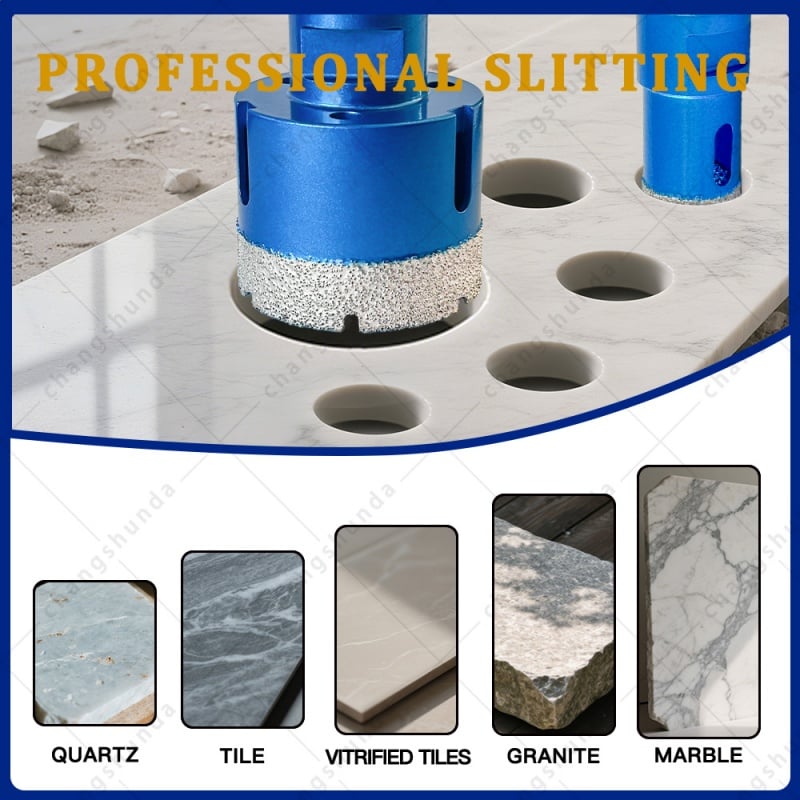

| Applicable Processing Materials | Vitrified Tile, Ceramic, Marble, Granite, Quartz Stone, Artificial Stone, Natural Slate |
Application

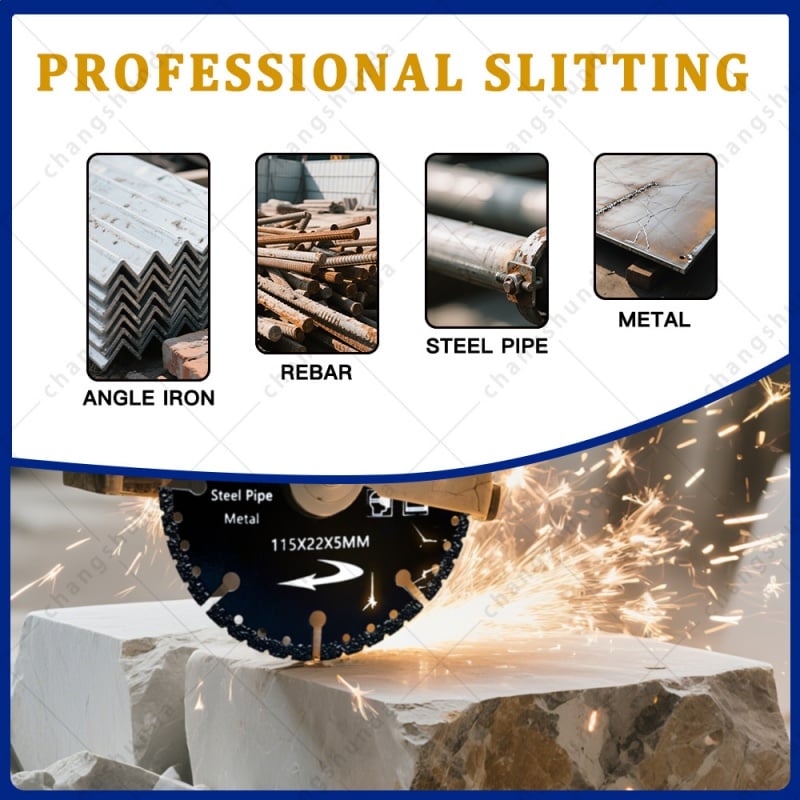

The multi-functional portable 5/8-11 Hole Saw Travel Kit with Diamond Cutting Disc is the essential travel tool for professional stone workers, tilers, cabinet installers and renovation contractors who need to move construction sites frequently. Small-size drill bits (6-10mm) inside the 5/8-11 Hole Saw Travel Kit with Diamond Cutting Disc are used for small hardware mounting holes, water pipe outlets and wall socket positioning holes on wall and floor tiles. Medium and large aperture hole saws (25-65mm) are applied to cut sink openings, range hood vent holes and decorative lamp holes on marble, quartz and granite countertops. The supporting 115mm cutting disc can quickly trim stone slabs, cut tile edges and split hard stone blocks. Equipped with dual adapters, this travel kit can cope with home DIY renovation, commercial kitchen countertop processing, outdoor garden landscape stone carving and other scenarios, covering all daily stone drilling and cutting construction demands.
Advantages
1. Drilling & Cutting Integrated Travel Design: The 5/8-11 Hole Saw Travel Kit with Diamond Cutting Disc combines hole saw bits and cutting disc in one portable travel bag, one set replaces two kinds of separate tools, saving users’ procurement cost and carrying burden.

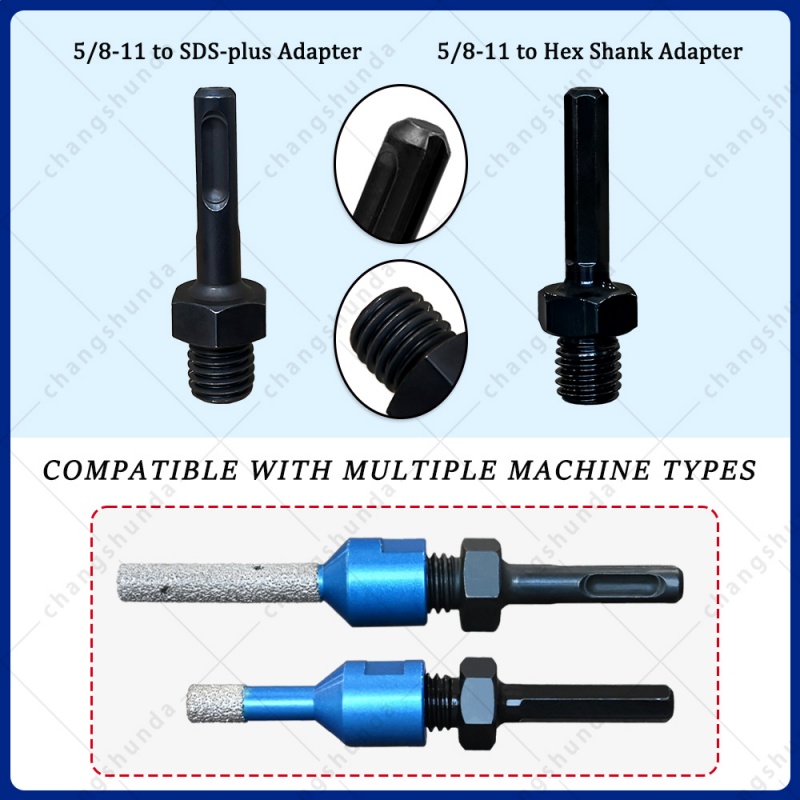

2. Universal 5/8-11 Thread + Dual Conversion Adapters: Standard 5/8-11 thread fits most global angle grinders; hexagonal and SDS-plus adapters expand compatibility to hand drills and hammer drills, realizing multi-tool switching.
3. Durable Vacuum Brazed Exposed Sand Craft: The diamond grit bonding strength is far higher than electroplated drill bits, with sharp dry cutting performance, and the service life is increased by more than 3 times.
4. Lightweight Classified Travel Storage Bag: Compared with bulky metal boxes, the matching travel bag is lightweight and foldable, with independent partition slots to protect each tool from impact and diamond grit abrasion, convenient to put into construction backpacks and vehicle tool boxes.
5. Complete Multi-Size Matching: Covering tiny small holes to large sink openings, all common stone processing aperture specifications are included, no need to purchase additional single drill bits.
6. Complete Global Export Safety Certifications: The whole set passes EN 13236 diamond tool safety standard, ISO 9001 standardized production certification and CE certification, fully compliant for commercial construction and cross-border independent station sales in European and American markets.
FAQ
Q1: What power tools can match the 5/8-11 Hole Saw Travel Kit with Diamond Cutting Disc?
A: The hole saw bits adopt standard 5/8-11 thread for angle grinders; the equipped hexagonal shank adapter is suitable for cordless electric drills, and the SDS-plus adapter matches hammer drills. The 115mm cutting disc can only be installed on angle grinders.
Q2: Is cooling water required during drilling and cutting work?
A: All tools inside the 5/8-11 Hole Saw Travel Kit with Diamond Cutting Disc support water-free dry cutting. Pause 30 seconds after 2 minutes of continuous operation for natural heat dissipation to effectively extend the service life of each drill bit and cutting disc.
Q3: What materials cannot be processed with this travel kit?
A: It is suitable for vitrified tile, ceramic, marble, granite, quartz stone and slate; it is not recommended for reinforced concrete, thick glass and metal steel plates, which will cause severe abrasion and shedding of exposed diamond grit.
Q4: Can I customize the brand logo and size combination of this travel kit?
A: Yes, Changshunda factory supports full OEM customization of the 5/8-11 Hole Saw Travel Kit with Diamond Cutting Disc, including laser engraving brand logos on drill bodies, printing exclusive store logos on the travel storage bag and adjusting the internal drill size matching according to market demand.
Q5: How to maintain and store all tools after construction?
A: After finishing drilling and cutting work, use a hard brush to clean stone dust residue on each hole saw bit and cutting disc, place all tools in a ventilated place to dry completely, then put each tool into the independent partition slot of the travel storage bag, zip up the bag and store it in a dry environment to avoid diamond grit collision damage and metal rust.
